Head Rotary Dry Syrup Powder Filling  Machine

Automatic 16 Head Rotary Dry Syrup Powder Filling Machine

DRYFILL-120 R

The Automatic High Speed 16

Head Rotary Dry Syrup Powder Filling Machine

Model DRYFILL-120R is suitable for Glass, Plastic, PET, HDPE, LDPE Bottles with maximum speed of 120 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter.

Machine in Stainless Steel Finish with heavy duty frame structure with S.S, Clading. All parts coming in contact with Powders are made from SS316 Materials as well as HDPE Funnels.

The Machine works on proven time tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder.

Machine with complete synchronization of Bottle Infeed StarWheel, Powder Wheel movement and outfeed Starwheel for smoother operation. Machine with Rotary Bottle Moving system ensures very high speed powder filing through independent moving funnel along with bottles for greater speed and performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.


SPECIAL / OPTIONAL FEATURES :
  • No Bottle - No Fill System
  • Rotary Bottle Movement System with Rotary Funnel System
  • Funnel with Unique Vibratory system for filling semi free flow powder at higher speed
  • All contact parts with easy removal system for Cleaning / AutoClaving / Sterilization
  • Machine construction in SS304 material
  • Filling Accuracy of +/- 1 to 2% depending on powder at controlled humidity below 30% Rh
  • Automatic Infeed and Exit of Bottles through Star Wheel System
  • No Bottle at infeed conveyor - Automatic Machine on/off system
  • Low Air - Machine Stop System
  • Low Vacuum - Machine Stop System
  • Toughened Glass Safety Cabinet*
  • Blower for dust extraction

TECHNICAL SPECIFICATIONS :


Bottle Diameter : Upto 85mm*, Square or Rectangular bottles can be used
Bottle Height : 100mm* Maximum
Fill Range : 5gms. To 70gms. In Single Dose with the help of change parts for different fill volume
Fill Accuracy : +/- 1 to 2% Depending upon the Powder, under the controlled level of Humidity
Humidity : Below 30% Rh required on machine to be arrange by customer
Electrical : 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power : 2.0 H.P. For Machine and 3.0 H.P. For Vacuum Pump
Compressed Air : Filtered, Oil Free 2kg/cm2 provided by customer only
Vacuum : 28” Hg. @ 300 LPM, provided by Customers only, 500LPM recommended
Conveyor Height : 815-940 mm

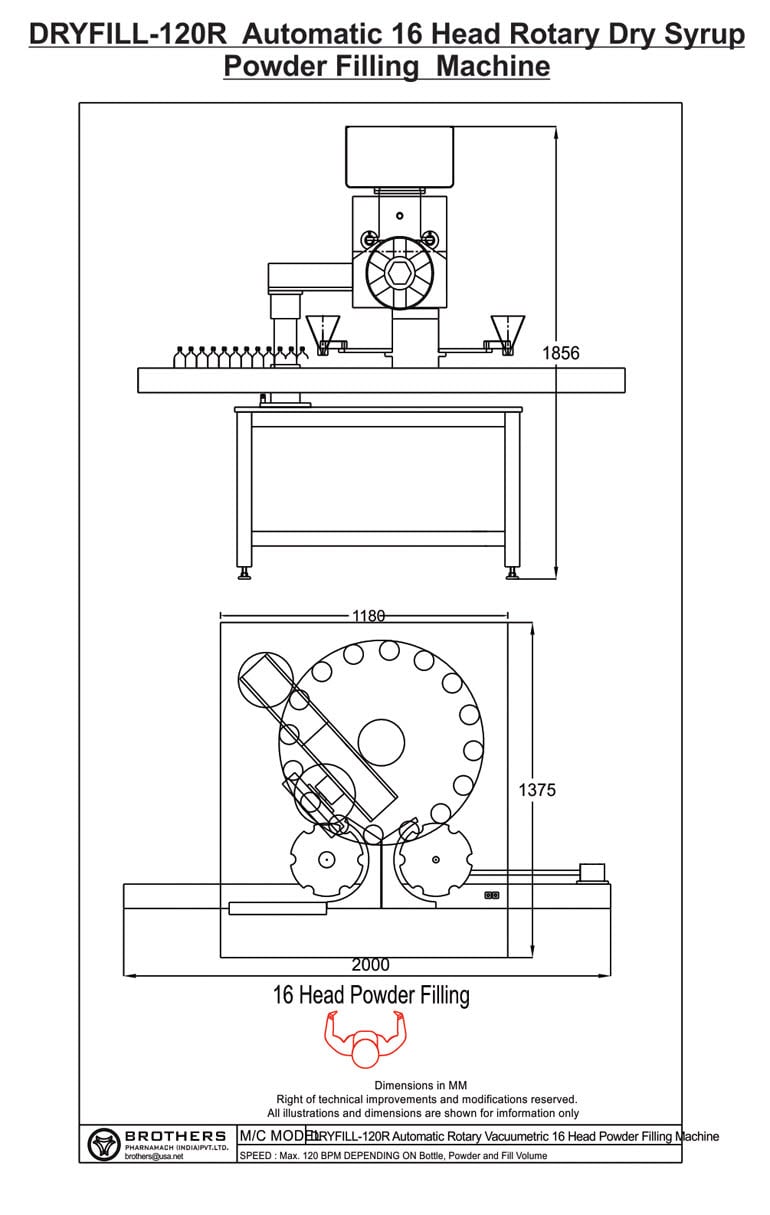

Overall Dimensions : 2000 mm (L) x 1200 mm (W) x 1800 mm
Speed : Max. 120 Bottles per minute depending on Bottle Size, Bottle Neck Diameter, Type of Powder and Fill Volume

* Specification can be changed as per customers requirements
