DRYFILL-250i

High Speed Injectable Powder Filling with Rubber Stoppering Machine

Injectable Powder Filling Machine -

DRYFILL-250i

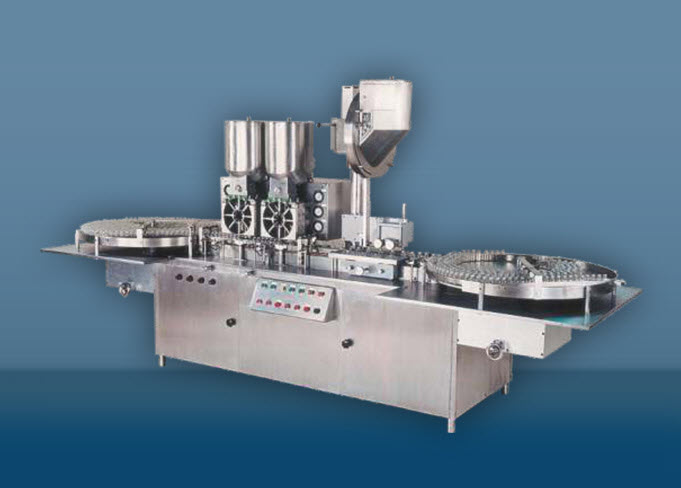

The Automatic High Speed Injectable Powder Filling with Rubber Stoppering Machine Model DRYFILL-250i, is suitable for Round Vials with maximum speed of 120 or 250 Vials per minute depending on various option of Filling Head and Powder Wheel System explain below.

Machine available in various combination of Filling Head and Powder Wheel to achieve Higher Speed and/or Higher Fill Volume required by customer. Machine available in Single Filling Head Twin Track Single Powder Wheel System, Twin Filling Head Single Track Single Powder Wheel System, Twin Filling Head Twin Track single Powder Wheel System, Twin Filling Head Twin Track Twin Powder Wheel System for optimum speed and fill volume requirement of customers.

Specially Machine construction in fully Stainless Steel finish including machine frame structure. Machine with built-in Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing vials for smoother operation. All parts coming in contact with Powders are made from Ss316 Materials. The Machine works on Vacuum and Air Systems to Fill powder in Vials, with on-line Vibrator type Rubber Stoppering system, The stopper inserting system operates in a continues mode with synchronized speed of machine.


SPECIAL / OPTIONAL FEATURES :
  • No Vial - No Fill System
  • All contact parts made of SS316 material with easy removal system for Auto Claving/Sterilization
  • Machine construction in SS304 material
  • Separate Variable Speed Drive for Powder Hopper
  • No Crossover Contamination during Charging of Powder due to new Design of Powder Hopper
  • Hopper can be completely dismantle for easy cleaning
  • Minimum residue of Powder in Hopper at the end of batch resulting in less wastage of powder
  • Tool Less adjustment of Doctor Blade and Wiper Blade saves valuable time and easy for setting
  • Tool Less change over for Powder Hopper and Well Agitator
  • Filling Accuracy of +/- 1% depending on powder at controlled humidity below 30% Rh
  • Built in Rubber Stoppering System
  • Multiple dosing system with the help of change parts
  • Built in Turn Tables with Separate Drive for speed control of infeed and outfeed of vials
  • Various safety features including Clutch system for Vial Breackage
  • Machine Bottom with all over minimum clearance of 6” Height
  • Moving conveyor above the top plate maintaining proper gap for meeting current application needs.
  • Automatic Infeed and Exit of Vials
  • Powder Hopper for charging with better position and design without crossing the line.
  • No Stopper - Machine Stop System
  • Low Air - Machine Stop System
  • Low Vacuum - Machine Stop System

TECHNICAL SPECIFICATIONS :


Vial Diameter : 25mm to 38mm
Vial Height : 75mm Maximum
Rubber Stopper Diameter : 20mm
Fill Range : 50mg. To 1.5 gms. In Single Dose, 1.5 gms. To 6 gms. In Double, Triple and Four Dose system, Dose system may vari. Depending on comibination of Filling Head and Powder Wheel
Accuracy : +/- 1% Depending upon the Powder, under the controlled level of Humidity
Humidity : Below 28% Rh required on machine to be arrange by customer
Electrical : 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power : 4.0 H.P.
Compressed Air : Filtered, Oil Free 4kg/cm2 provided by customer only
Vacuum : 28” Hg. @ 500 LPM, provided by Customers only, 600LPM recommended
Conveyor Height : 815-940 mm

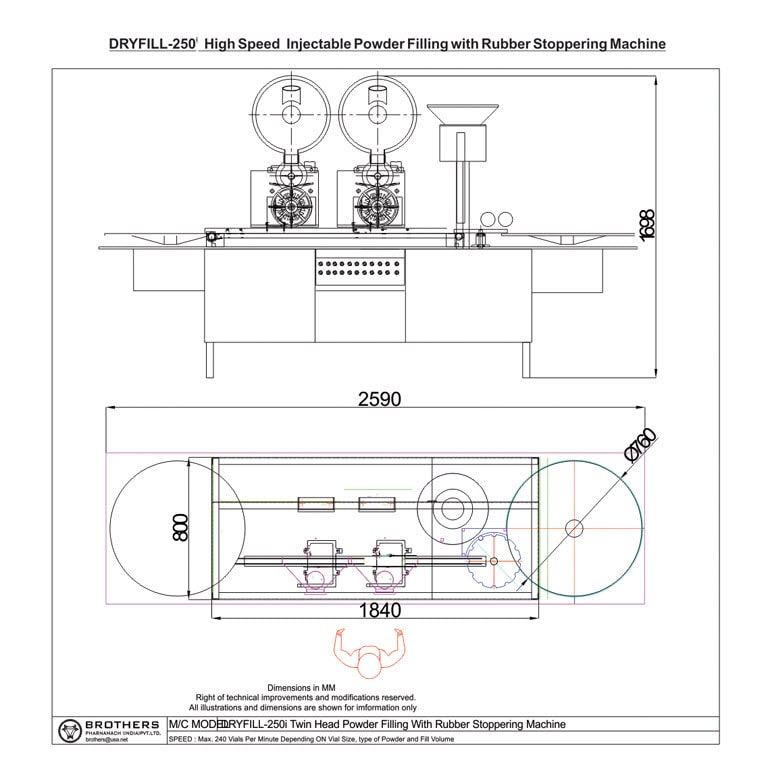

Overall Dimensions : 3000 mm (L) x1000 mm (W) x 1675 mm* depending on Model
Speed : Max. 120 or 250 Vials per minute depending on combination of Filling Head and Powder Wheel as well as Fill Volume

* Specification can be changed as per customers requirements

* High Speed Injectable Powder Filling with Rubber Stoppering Machine Manufacturer Contact for More Details
