Liquid Filling Machine - VACFILL-240 MB

VACFILL-240 MB
VACFILL-240 MB

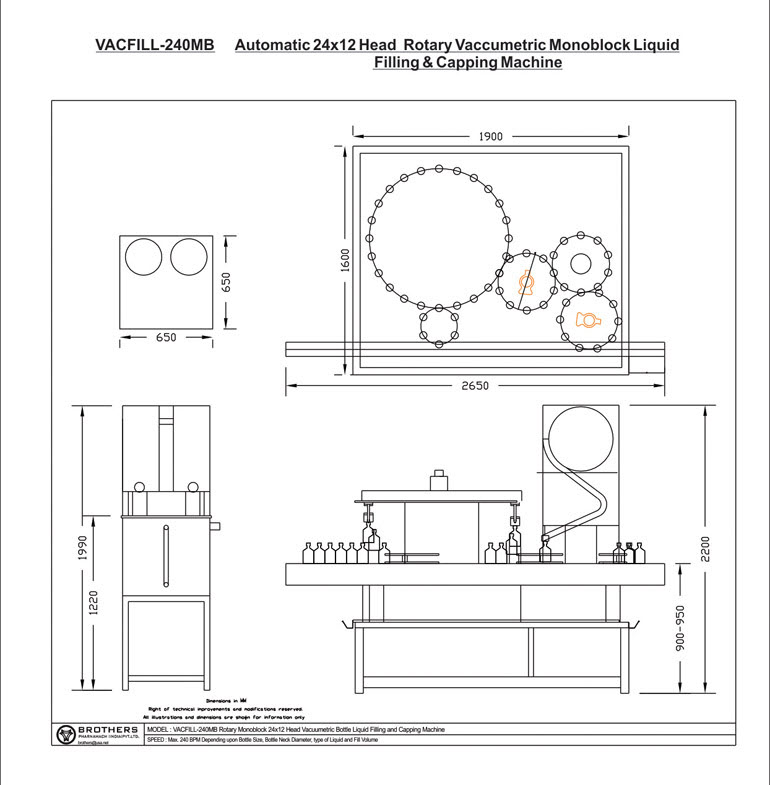

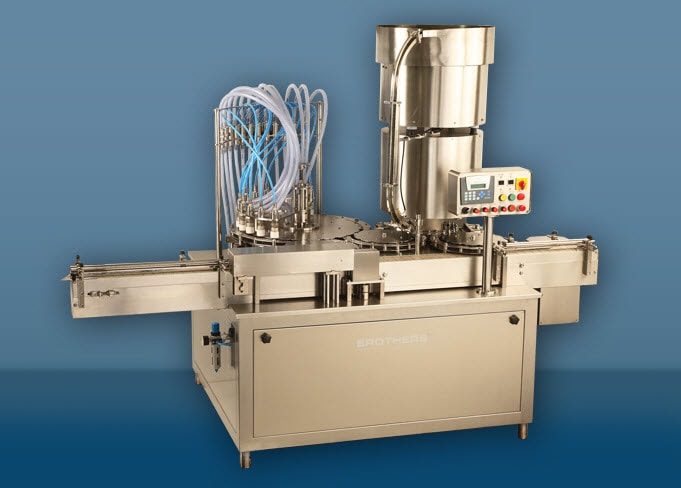

Automatic 24x12 Head Rotary Vaccumetric Monoblock Liquid Filling & Capping Machine


The Automatic 24 x 12 Head Rotary Vaccumetric Monoblock Liquid Bottle Filling & Capping Machine, Model VACFILL-240MB, is suitable for Round, Flat or Oval Shape Bottles with maximum speed of 240 Bottles per minute depending on type of Liquid, Fill Volume and Bottle Neck Size, Machine is suitable for free flowing clear liquid without any particles. Machine available with bottle capping operation for ROPP Aluminium Cap or Plastic Screw Caps.

Machine works on Level Filling principal which fills liquid into the bottle with the help of vacuum and maintain the equal level of liquid in each bottles. Machine construction in Stainless Steel finish.


SPECIAL / OPTIONAL FEATURES :
  • No Bottle - No Fill System, No Bottle - Machine Stop System
  • Machine with 2nos. Filling Tank
  • Rotary 24X12 head system for higher speed, other option also available,
  • Machine construction in SS 304 material
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Over time
  • Bottle Filling and Capping operation in one machine due to monoblock design
  • Built-in A.C. Variable Freq. Drive System

TECHNICAL SPECIFICATIONS :


Bottle Diameter : Upto 90mm*
Fill Range : 100ml to 500/1000ml with help of Change Parts
Electrical : 220 VAC Single Phase Power Supply (50 Hz)
Power : 5.0 H.P.
Speed : Max. 200-240 Bottles per minuite
Conveyor Height : 850-900 mm

* Specification can be changed as per customers requirements
