The
Automatic Unscrambler for Round Bottles
are suitable to connect with any machine for uninterrupted feeding of bottles with speed upto 120 Bottles per minute depending on Bottle diameter and height.

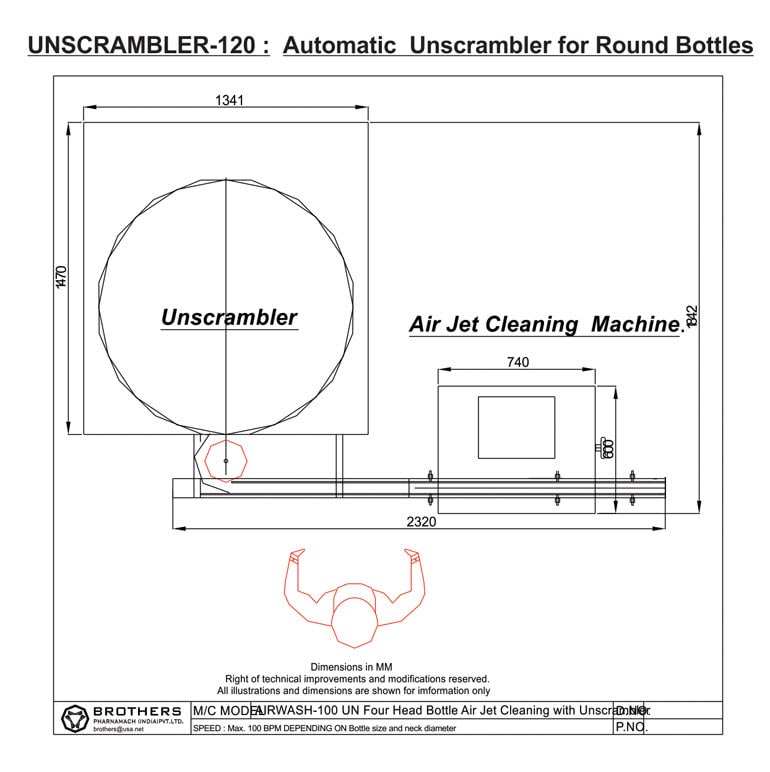

Unscrambler transfer bottles directly from Loading Hopper to infeed conveyor of any machine in vertical position. Machine is mainly suitable to connect with Bottle Air Jet cleaning machine shown in the layout for used in Bottle packing line.
Machine can be used for feeding of Plastic or PET Bottles, Jars etc. Machine suitable for use on products like Dry Syrups, and Bulk Packing of Tables and Capsules.
Machine in Stainless Steel Finish with all contact parts in SS316 and Nylon Materials. Machine also having overload clutch system to prevent jamming during the operation. The manifold comprises of inner nozzles which jets compressed air in the bottle and an outer socket, which cover the mouth of the bottle and is connected to an exhaust, ensures perfect cleaning.
SPECIAL / OPTIONAL FEATURES :
- Fully Stainless Steel Finish
- Simple Change over for different size of Bottles
- Overload Clutch for Jamming
- A.C. Variable Frequency Drive System.
TECHNICAL SPECIFICATIONS :
| Product Diameter : |
Upto 60 mm* |
| Product Height : |
150 mm* |
| Electrical : |
415VAC Three Phase Power Supply (50 Hz) and 220 VAC 1 Phase Power Supply |
| Power : |
3.0 H.P. |
| Compressed Air : |
Appx. 6 Bar to be provided by customer |
| Speed : |
Upto 120 per minute depending on bottle size |
| Operation Height : |
875 to 950 mm Adjustable |
| Overall Dimensions : |
1500 mm (L) x 1400 mm (W) x 1300 mm (H) |
* Specification can be changed as per customers requirements
