The Automatic Rotary Monoblock 8x8 Head
Volumetric Rotary Bottle Filling Machine
and Capping Machine, Model LIQFILL-80MB is suitable for Round, Oval, Flat or Square Bottles with maximum speed of 80 Bottles per minute. Machine with Rotary operation of bottles resulting in smoother movement of bottles at lower speed producing higher output. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless Steel finish including M.S. Frame structure with SS304 cladding. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS 316 Materials.
Machine works on Volumetric Piston Filling principal which fills Liquid into the bottle with High Level of Fill Accuracy of liquid in each bottles. Machine suitable for Filling Phamaceutical products, Oil, Mouth Wash etc.
SPECIAL / OPTIONAL FEATURES :
- No Bottle - No Fill System, No Bottle - Machine Stop System
- Rotary Bottle Movement system for smoother operation
- All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
- Machine construction in SS 304 material
- Very High Fill Accuracy
- Automatic Infeed and Exit of Bottles
- Minimum Change Over time
- Filling and Capping operation in Single machine due to Monoblock design
- Built-in A.C. Variable Freq. Drive System
TECHNICAL SPECIFICATIONS :
| Bottle Diameter : |
28mm to 70mm* |
| Bottle Height : |
50mm to 200mm* |
| Cap Size : |
18mm to 55mm ROPP or Plastic Screw Cap |
| Fill Range : |
15ml to 120ml or 30ml to 250ml* |
| Accuracy : |
+/- 1% Depending on Liquid with Single Dose |
| Electrical : |
440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) |
| Power : |
2.5 H.P. |
| Speed : |
Max. 80 Bottles per minute depending on Fill Volume and type of Liquid |
| Syringe Fill Range: |
15ml to 120ml,30ml to 250ml or 250ml to 500ml on Special Ver. |
| Conveyor Height : |
800-850 mm |

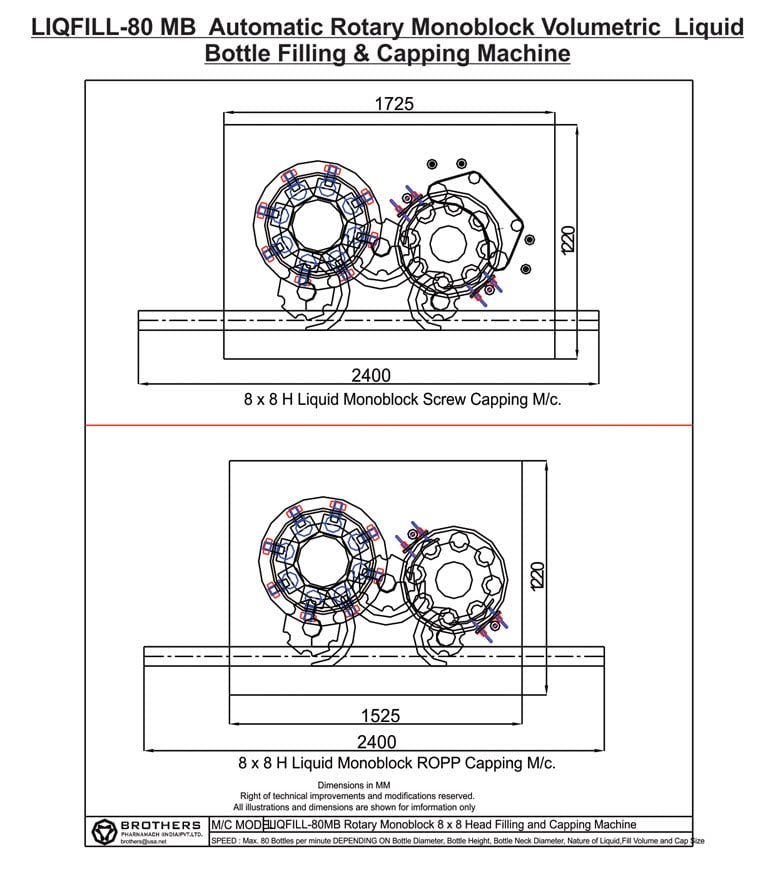

| Overall Dimensions : |
2400 mm (L) x 1250 mm (W) x 1550 mm(H) |
* Automatic Rotary Monoblock Volumetric Liquid Bottle Filling & Capping Machine Manufacturer
