Automatic Six Head Bottle Screw Capping Machine

CAPSEAL-120 SR

The Automatic

Six Head Bottle Screw Capping Machine

Model CAPSEAL-120SR for Plastic Screw Cap. Machine is suitable for Round or other shape of Glass/Plastic/PET/HDPE or LDPE Bottles with maximum speed of 80 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Cap Size. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures. The Capping Machine is ideal for application in Pharmaceutical, Food, Pesticides, Cosmetic & Other Industries.

The Machine is equipped with Orinetation type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continues feeding of Cap for online operation on any liquid of powder filling line. Machine suitable for various sizes of Bottles and Plastic Screw Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.

SPECIAL / OPTIONAL FEATURES :

No Bottle - No Cap System
No Cap - Machine Stop System
Machine construction in Stainless Steel Finish
Infeed and Exit Star Wheel with Overload Clutch System to avoid Bottle breackage
Single Drive Synchronizing Total Operation of Star Wheel and Turret with Star Wheel
Cap Feeder with Variable Speed System for feeding control of caps.
Minimum Change Over and Setting time
Hopper can be completely dismantle for easy cleaning
Various safety features including Clutch system to avoid Bottle Breakage
Single Drive synchronizing operation of Conveyor and Star Wheel
Minimum Change over time

TECHNICAL SPECIFICATIONS :

Bottle Size :	Diameter Up to 85mm* or other Shape bottle with proper base
Bottle Height :	300mm* Maximum
Cap Size :	Upto 32mm*
Electrical :	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power :	3.0 H.P.
Conveyor Height :	850-900 mm

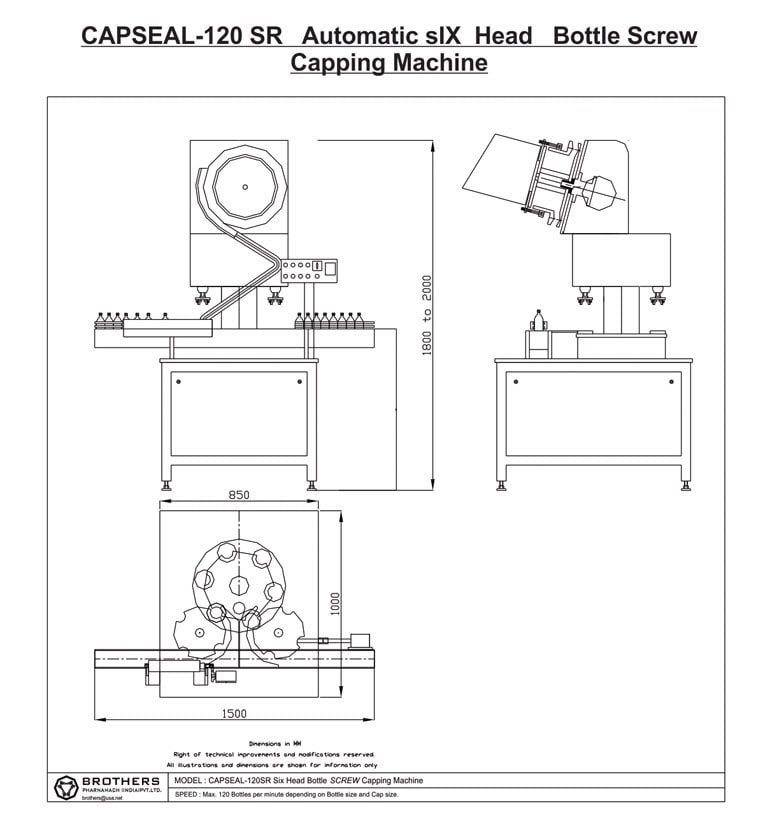

Overall Dimensions :	1500 mm (L) x 1000 mm (W) x 2000 mm (H)
Speed :	Max.120 Bottles per minute depending on Bottle and Cap Size

* Specification can be changed as per customers requirements
